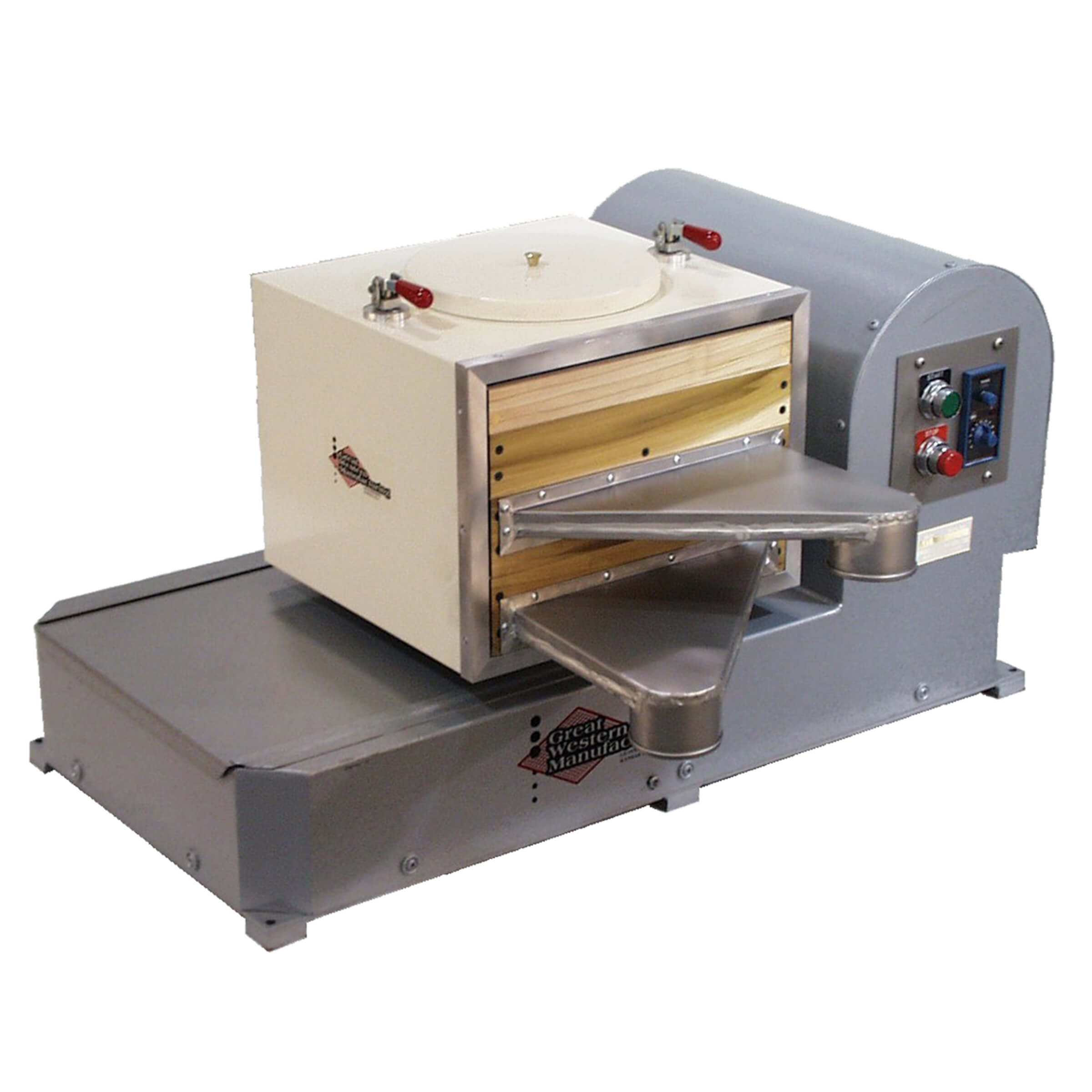

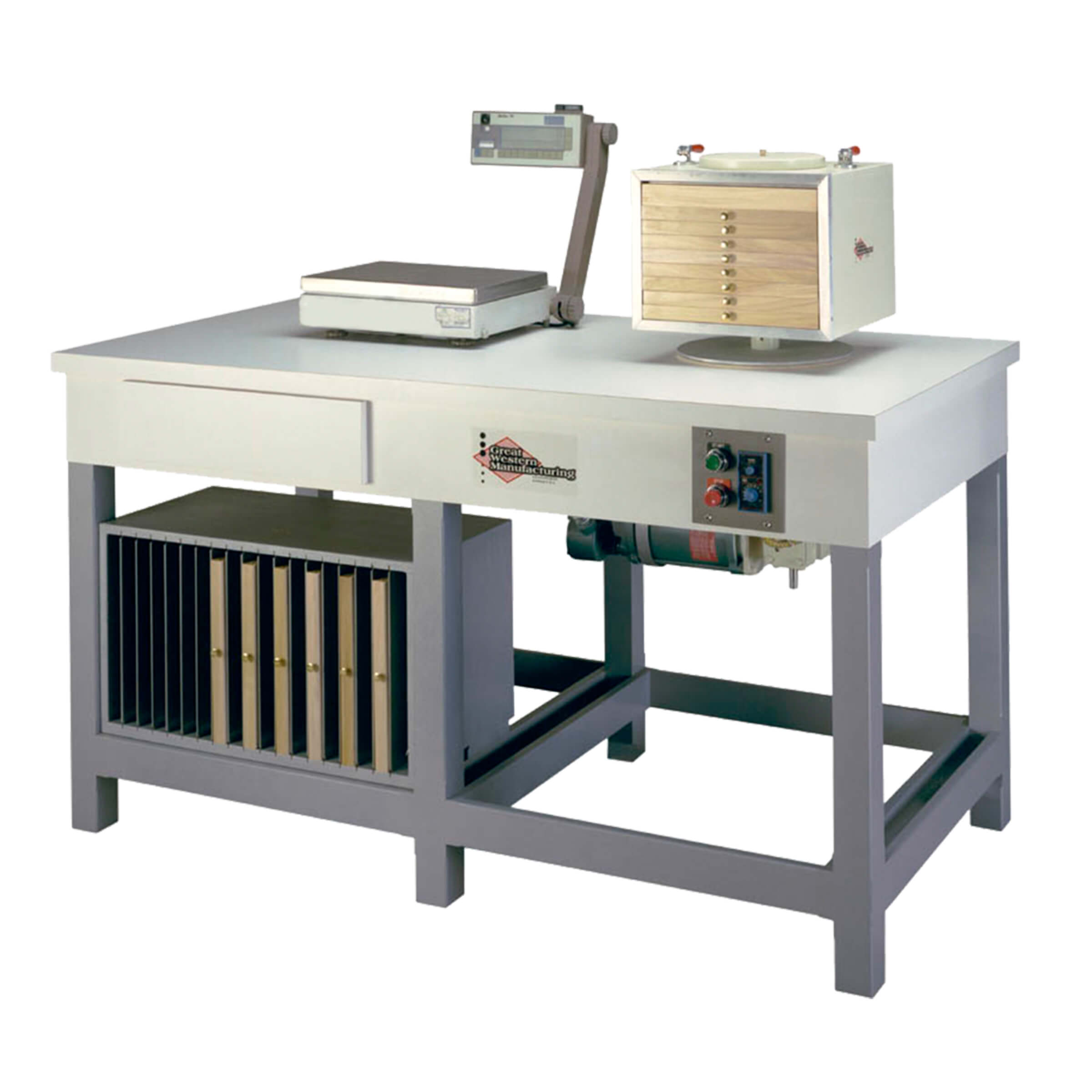

Sample size sifters are widely used for laboratory analysis to determine break release, monitor sifting performance, and to perform other quality control testing. Operated with a standard single-phase motor and controlled with an adjustable built-in electronic timer, the Sampl-Sifter is available in a table-top version or installed in a worktable.
Sifters
Separated by Excellence
Sampl-Sifter
The stainless-steel lined compartment features quick release sieve clamps, ball bearing components and allows a sieve stack of up to 8” tall. The sieve stack can be comprised of any combination of sieve frames (each with 1 ft. sq. of sieving area) and catch pans.
Multiple combinations of sieves and pans allow multiple samples to be tested simultaneously. Cleaner support frames (sieve frames with backwire) are also available and provide active screen cleaning for materials that might otherwise blind the screen. Standard sieve frames and standard catch pans are 1” tall. Standard cleaner support frames with backwire are ¾” tall. Custom heights are available.
The sifter is also available with support base to hold up to four full-height (2”) or eight half-height (1”) Ø8” or Ø12” test sieves.
The Sampl-Sifter operates at 160 rpm with a Ø4” gyratory circle using a 1/3 HP, Class II, Group G explosion-proof 110/220V, 60 Hz or 110/220V, 50 Hz motor.
- Useful for refining operations for quality control.
- Provides quick and accurate feedback on samples being tested.
- Adaptable installation for space-effective use.
- Customizable to process requirements.
- Pre-measured product sample is placed in the sifter onto a top pan with a guiding baffle.
- After the sifter is started, product is conveyed below to a sieve frame with a screen frame insert and backwire.
- Overs convey out the transition on the front of the sieve frame and thrus are discharged out below through the discharge pan.
- An optional sifter inlet funnel is available to allow pre-measured samples to be fed to the sifter continuously.
