Great Western Manufacturing and Gazel Milling have joined forces to provide the broadest range of standard and custom sifter solutions available. The combined years of experience, industry knowledge, essentially singular manufacturing focus on sifting equipment, and advanced manufacturing capabilities of both firms facilitate this broad range of sifting equipment offerings.
Sifters
Separated by Excellence

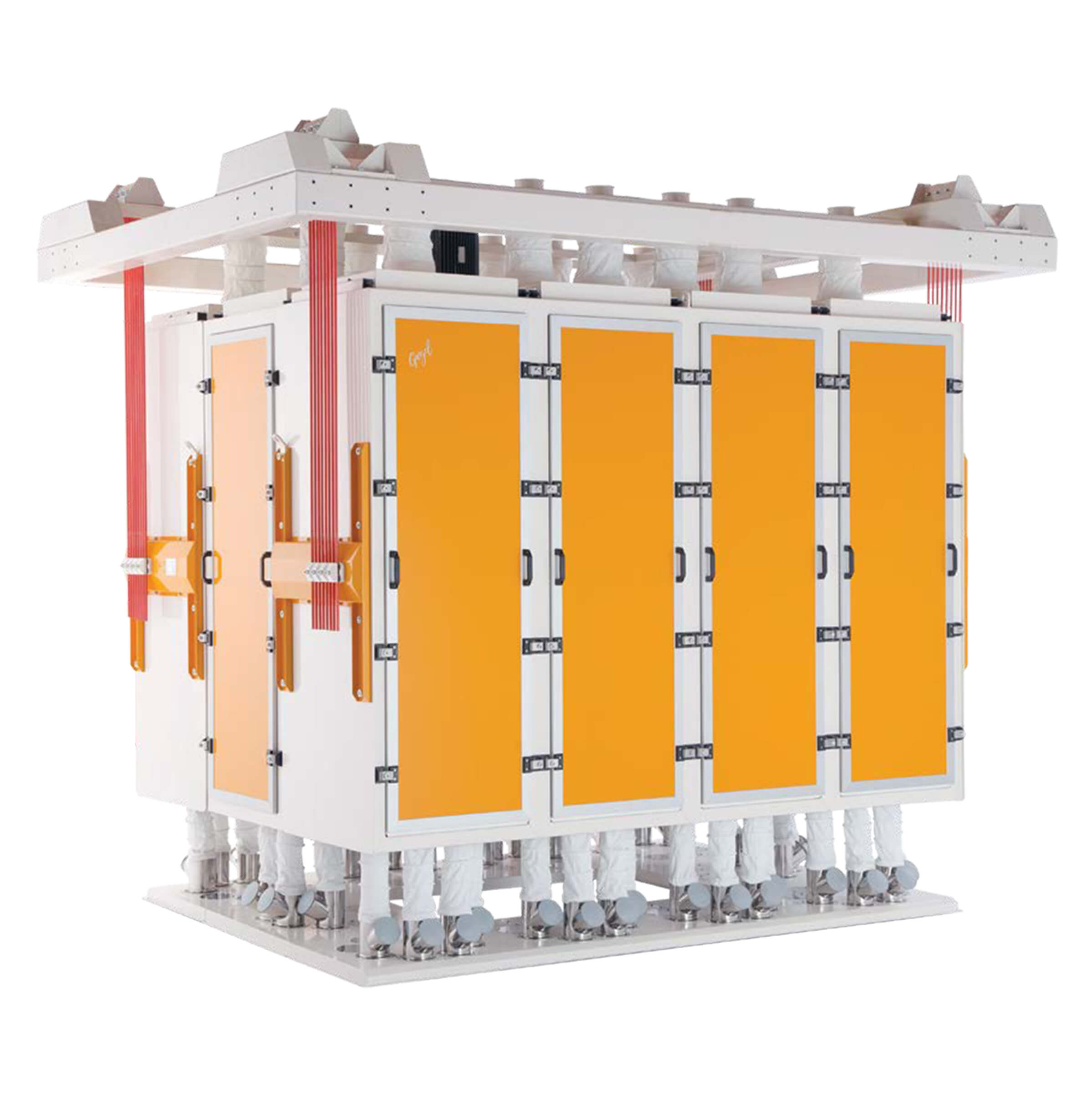

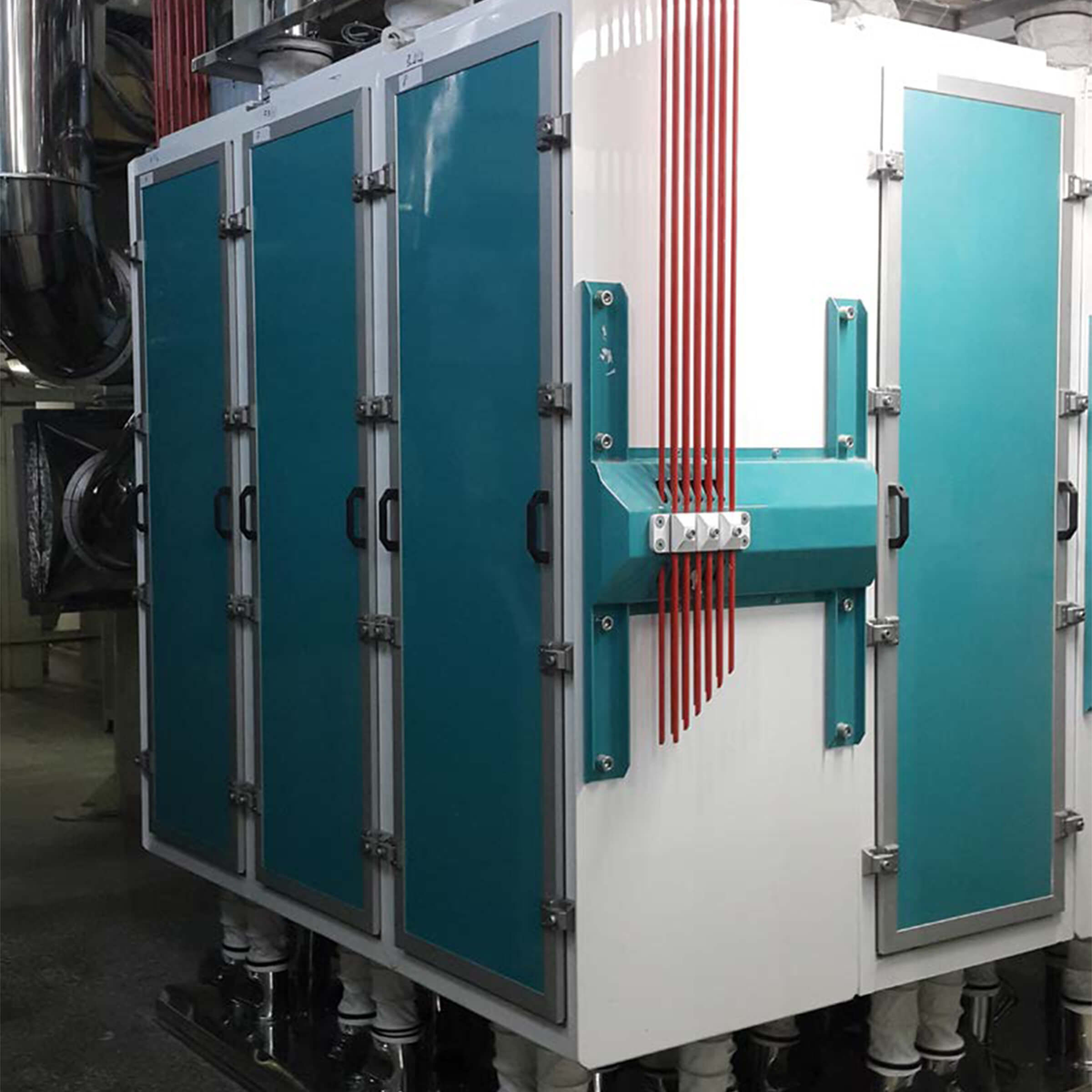

Metal Frame Free Swinging Sifter
- Sanitary operation and easy cleanout is assured through careful design with no ledges or unsealed gaps. Dust-tight aluminum doors and crevice-free joints also help assure the best in sanitation.

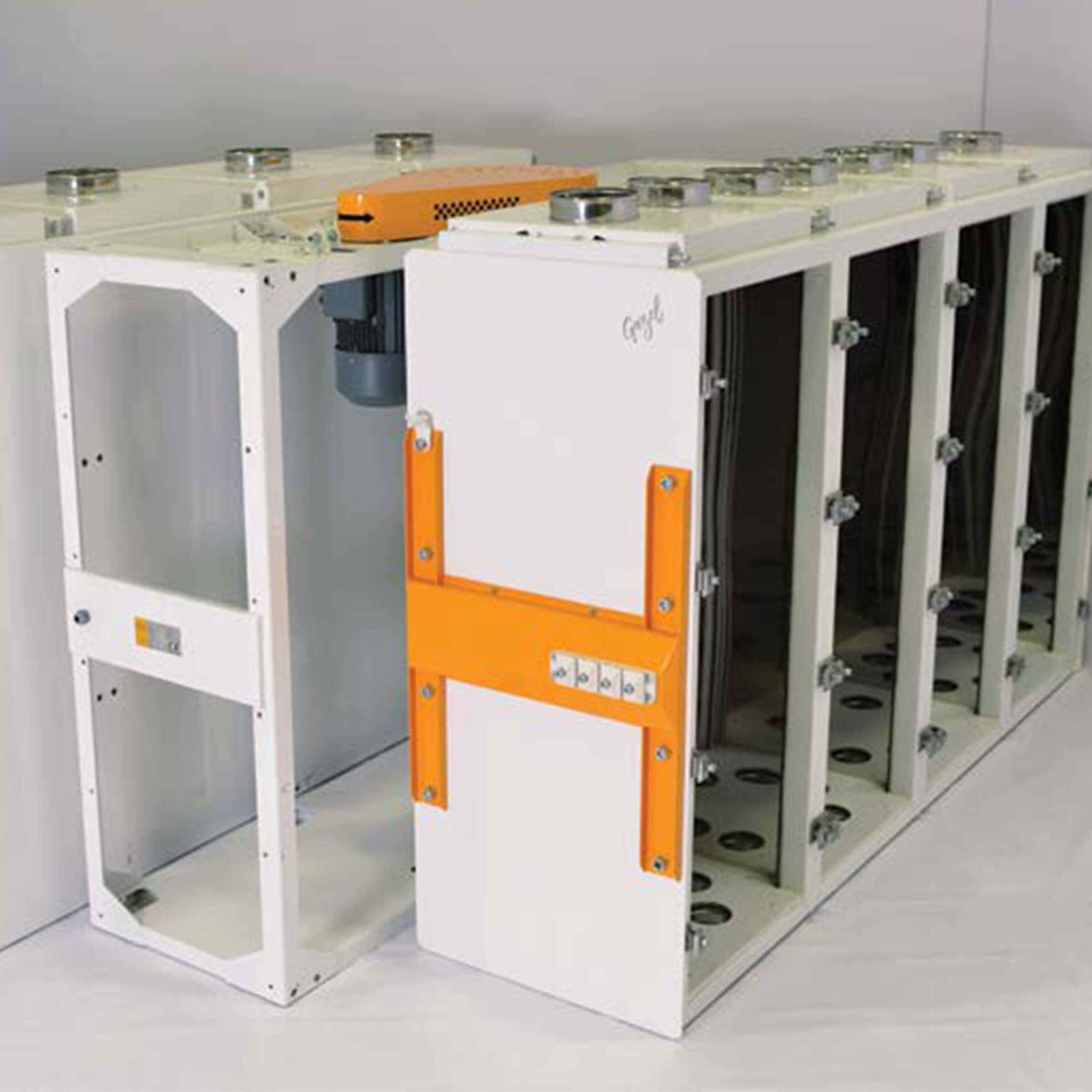

- With Gazel construction, the sifters consist of fully assembled sieve compartments, which require no field assembly, and a central drive. The simple and reliable drive allows easy adjustment of the working circle either by changing the position of the weights or adding/removing weights as required.
- Maintaining a securely compressed sieve stack is critical to proper sifter operation, leak-free performance, and maximizing sieve frame life. The sturdy Gazel press top with mechanical press top operators ensures uniform compression and is easily operated or serviced from the sifter’s exterior.
- The bottom distributor routes the separated products to the outlets as needed. Standard European, or on request, North American standard outlet arrangements are available.
- Great Western offers the widest variety of sieve sizes and types to best suit your production and maintenance needs. Constructed with select poplar lumber or food grade plastic, sieves are available with numerous options to meet your application requirements.
The Great Western alliance with Gazel allows us to offer:
- Structural steel sieve compartments
- From 2 to 12 compartments
- Interiors with T430 mirror finish stainless steel
- US standard and European Standard sieve sizes
- Custom sifter and sieve sizes
- Insulated panels
- European or US standard bottom outlet arrangements
- Inlet spout supports
- Discharge floor inspection spouts and floor plates
- Fiberglass suspension rods
- Responsive service and support from North America
- 1,000 rpm Engine Speed
- 245 rpm Machine Speed
- 2.56” (65mm) Working Circle Diameter
| GMJ • 740 x 740mm sieves • High-Capacity Sifter | |||||
| Sections | Sieves | Width (A) | Depth (B) | Section Height (C) | HP |
| 10 | 20, 24, 28, 30 | 4562 | 2639 | 1590-2340 | 10 to 15 |
| 8 | 16, 20, 24, 28, 30 | 3716 | 2639 | 1290-2340 | 7.5 to 10 |
| 6 | 16, 20, 24, 28, 30 | 2870 | 2639 | 1290-2340 | 7.5 |
| 4 | 16, 20, 24, 28, 30 | 2026 | 2639 | 1290-2340 | 5 |
| 2 | 12, 16, 20, 24, 28 | 1010 | 2639 | 950-1250 | 3 |
| GM • 640 x 640mm sieves • Standard Sifter | |||||
| Sections | Sieves | Width (A) | Depth (B) | Section Height (C) | HP |
| 10 | 20, 24, 28, 30 | 3992 | 2356 | 1550-2300 | 7.5 to 10 |
| 8 | 16, 20, 24, 28, 30 | 3246 | 2356 | 1550-2300 | 5 to 10 |
| 6 | 16, 20, 24, 28, 30 | 2501 | 2356 | 1550-2300 | 5 to 7.5 |
| 4 | 12, 16, 20, 24, 28, 30 | 1756 | 2356 | 950-2300 | 5 |
| 2 | 12, 16, 20, 24, 28 | 1010 | 2356 | 950-1250 | 3 |
| GM+ • 640 x 640 mm sieves • Extra Sections Sifter | |||||
| Sections | Sieves | Width (A) | Depth (B) | Section Height (C) | HP |
| 12 | 20, 24, 28, 30 | 3992 | 2446 | 1550-2300 | 10 to 15 |
| 10 | 20, 24, 28, 30 | 3246 | 2446 | 1550-2300 | 10 |
| 8 | 20, 24, 28, 30 | 2501 | 2446 | 1550-2300 | 7.5 |
| GMS • 740 mm SQ sieves • Side Access Sifter | |||||
| Sections | Sieves | Width (A) | Depth (B) | Section Height (C) | HP |
| 2 | 16, 20, 24 | 3030 | 1510 | 2076, 2376, 2676 | 3 to 5 |
